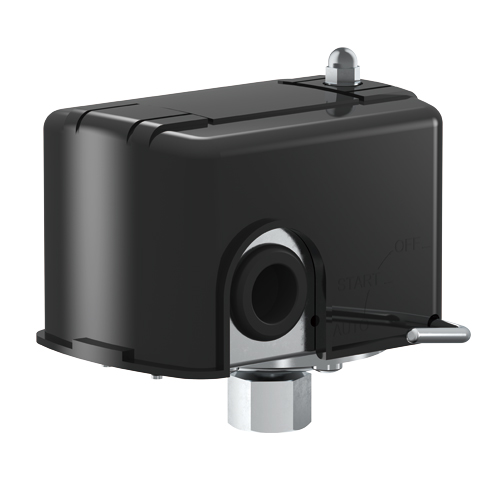

环力 BSK-6 水泵控制器 增压供水 自动启停水泵 压力定制 体积小 整机环保 手柄启动 水泵压力控制器 3C认证 单相
BSK-6
BSK-6：1.一款根据设定压力、带手柄启动的水泵压力控制器；2.安装方便、性能可靠、满足用户的不同需求；3.具有多种接口规格尺寸可供选择；4.有着节能、高效、绿色环保的优良特性；5.可根据客户要求定制不同启停压力范围；6.系统缺水保护；7.多种认证。
Quantity
 UL certificate |  CSA certificate |  TUA certificate |  CE certificate |  NSF. certificate |  RoHS certificate | ||

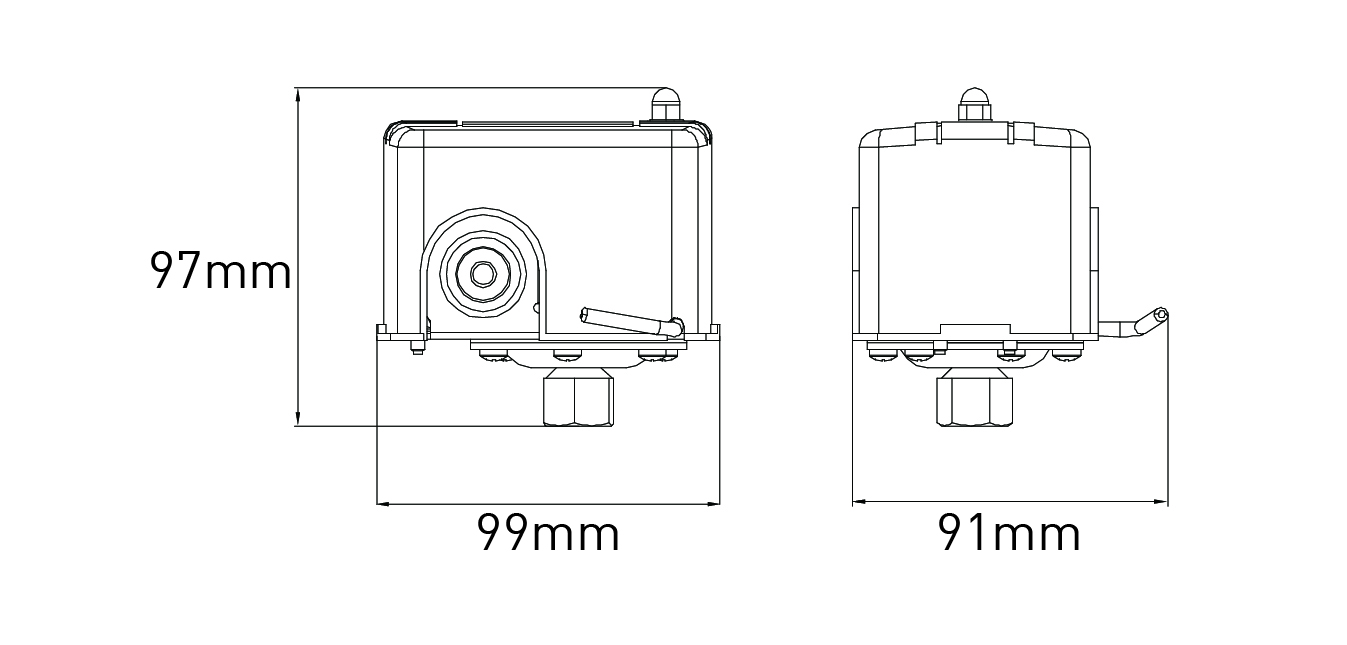

| Product dimensions |
| Product parameter | |||
| Rated voltage | 220-240VAC | Rated frequency | 50Hz |
| 110-120VAC | 60Hz | ||
| Rated current | 12A | Rated power | 2HP |
| 20A | 1.5HP | ||
| Max. working pressure | 4.2bar | ||
| 60PSI | |||
| Starting pressure （adjustable） | 0.5-4.5bar | ||
| Common pressure: starting / stopping pressure | bar: 1.4/2.8; 2.1/3.5; 2.8/4.2; | ||
| PSI: 20/40; 30/50; 40/60; | |||
| Threaded options | |||||||
| NPT1/4” Female threaded | NPT1/4” Male threaded | ZG1/4” Female threaded | ZG1/4” Male threaded | NPT1/4” Female threaded without grovve | Quick connector | G1/4” Female threaded revolving connector | G3/8” Female threaded revolving connector |
 |  |  |  |  |  |  |  |
| Download manual | ||||
| File name | File size | File format | Updated date | Download link |
| BSK-6 中文说明书 | 3MB | 2022.11.08 | Click to download | |
| Product Description |
| BSK-6 整机环保材质 IP20防水等级 |  |

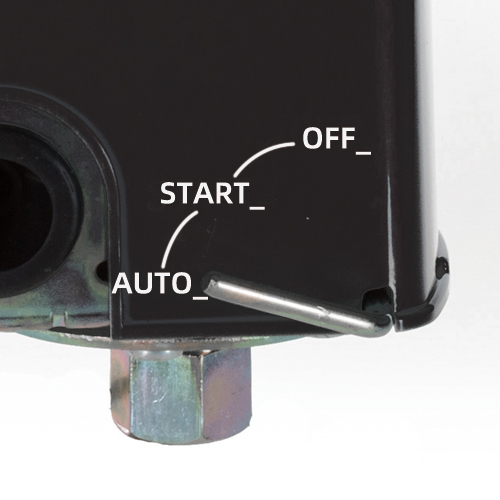

 | 带手柄启动 缺水保护 安装方便、性能可靠、自动启停 |
| 双向接地保护 接线方便简单，安全可靠 |  |
 | 单相 压力可调节 自动启停 可根据客户的要求定制不同启停压力范围 |

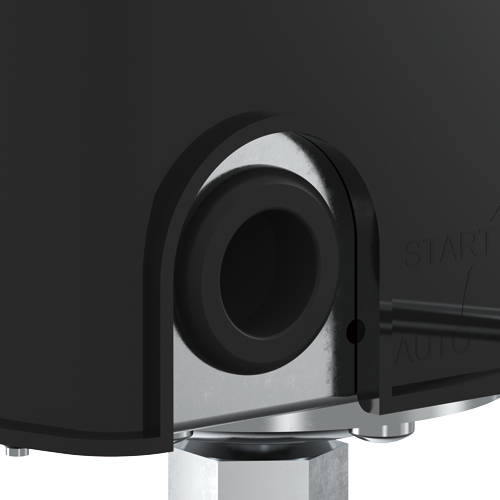

| 橡胶防尘套 穿线、防尘、寿命高 |  |

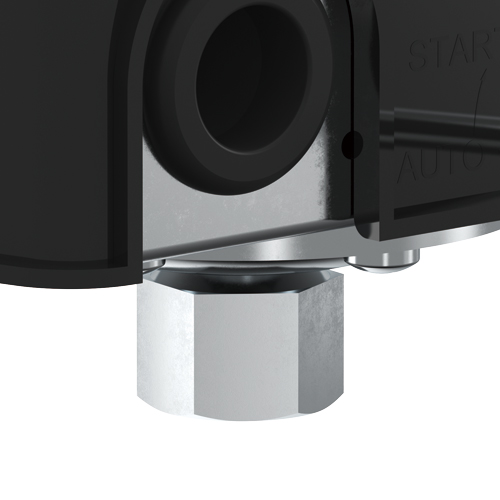

 | 多种螺纹连接 可以满足用户的不同需求，更加多元化 |
