环力 BSK-3水泵压力控制器 自动启停 体积小 安全性能 定制启停压力 安装方便 单相 三相 3C认证 TUV认证、CE安全认证 ROHS环保要求 体积小 安装快捷 单项220V及三项380可选 防护等级IP44
BSK-3
BSK-3是1.一款根据设定压力自动启停的水泵压力控制器；2.体积小、安装方便、性能可靠；3.具有多种接口螺纹可供选择；4.可根据客户要求定制不同启停压力；5.有节能、安全、绿色环保的优良特性；6.产品具有多种认证。
Quantity
 TUA certificate |  CE certificate |  CCC certificate |  RoHS certificate | ||||

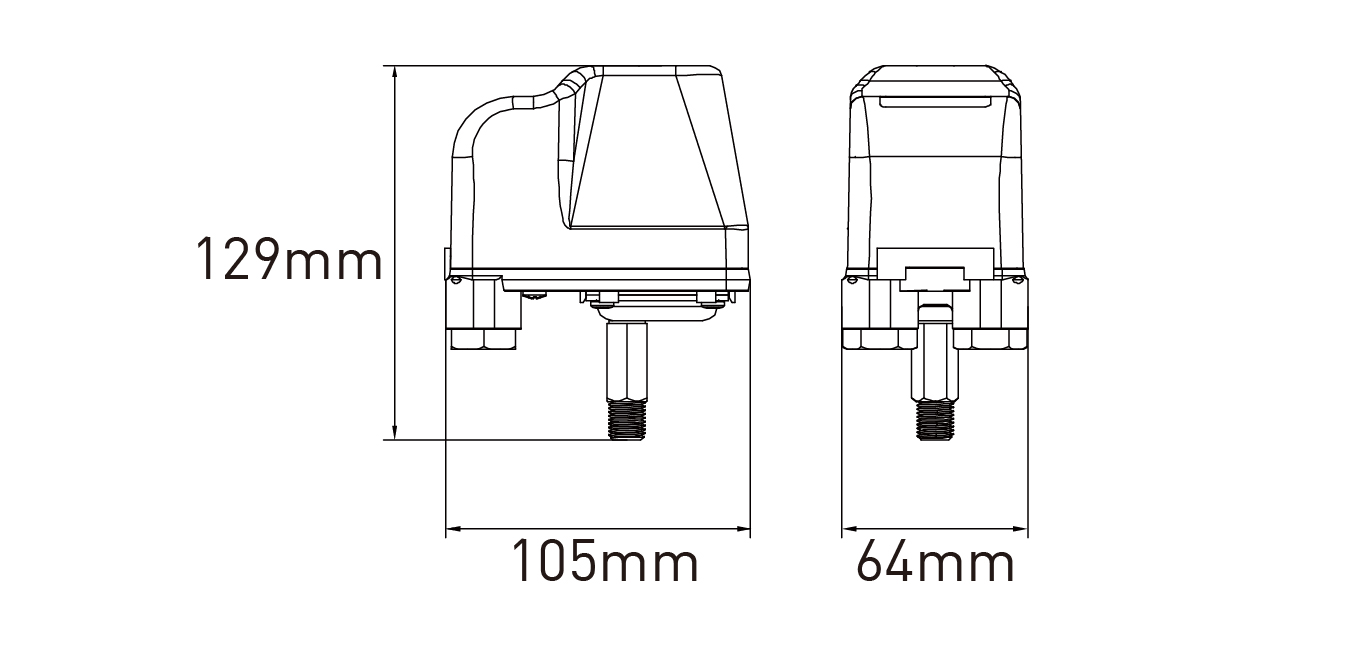

| Product dimensions |
| Product parameter | ||||
| Rated voltage | 220-240VAC | Rated frequency | 50Hz | |
| 380VAC | ||||
| Rated current | 16（8）A | Rated power | 1.1kW | |
| Max. working pressure | 5.6bar | |||
| 80PSI | ||||
| Common pressure: starting / stopping pressure | bar: 1.2/2.4; 1.4/2.8; 1.5/3.0; 2.0/3.5; 3.5/4.9; | |||
| PSI: 17/34; 20/40; 21/42; 28/50; 50/70; | ||||
| Threaded options | |||||||
| Female threaded NPT1/4” | Female threaded G1/4” | Revolving connector G3/8” | Revolving connector G1/4” | Male threaded ZG1/4” | Male threaded ZG1/4” | Male threaded G1/4” | Male threaded G1/4” |
 |  |  |  |  |  |  |  |
| Download manual | ||||
| File name | File size | File format | Updated date | Download link |
| BSK-3 中文说明书 | 3MB | 2022.11.08 | Click to download | |
| Product Description |

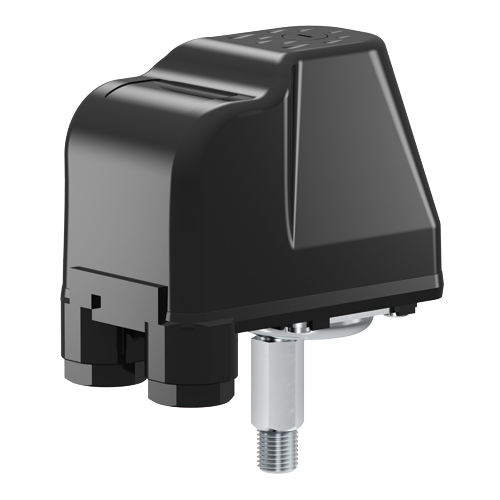

| BSK-3 整机环保材质 IP44防水等级 |  |

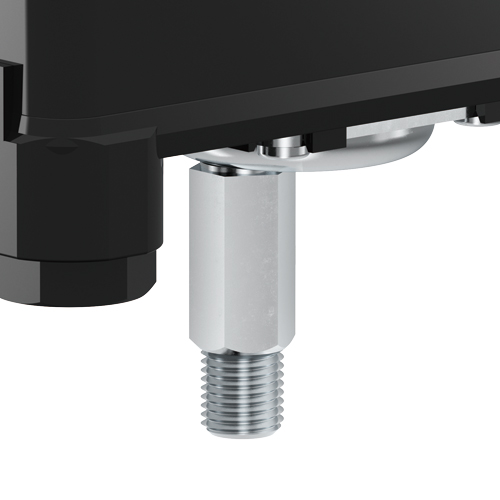

 | 多种螺纹连接 可以满足用户的不同需求，更加多元化 |

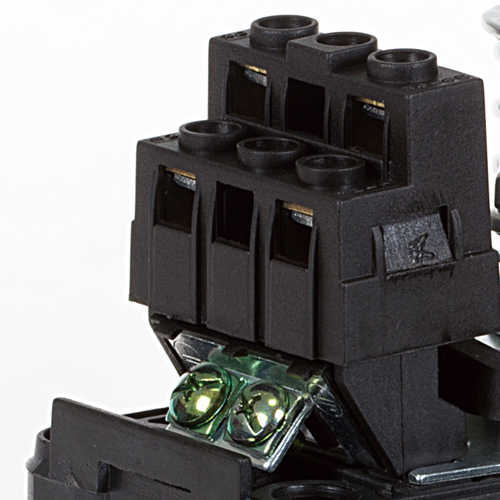

| 双向接地保护 接线方便简单，安全可靠 |  |

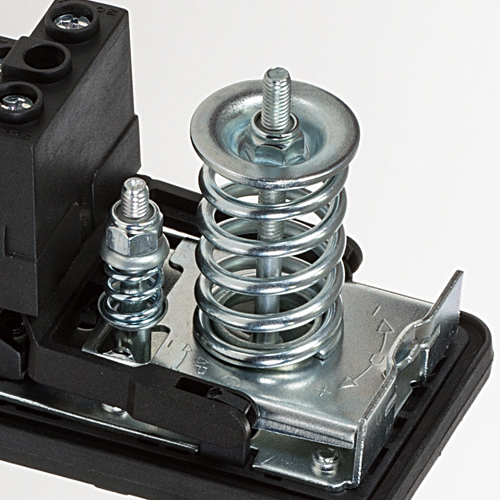

 | 单相/三相 压力可调 自动启停 可根据客户的要求定制不同启停压力范围 |

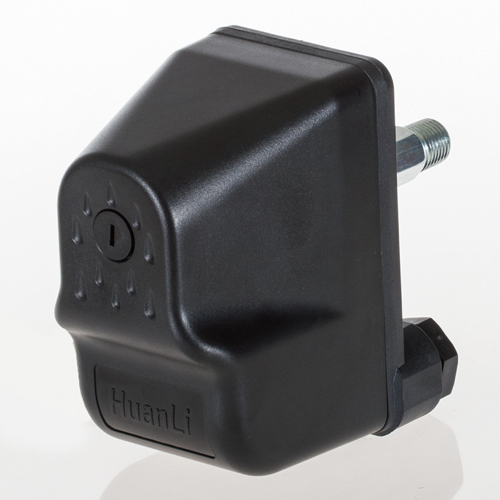

| 体积小巧 安装方便 性能可靠 |  |
 | 节能 · 高效 · 绿色环保 致力产品不断改进 |
